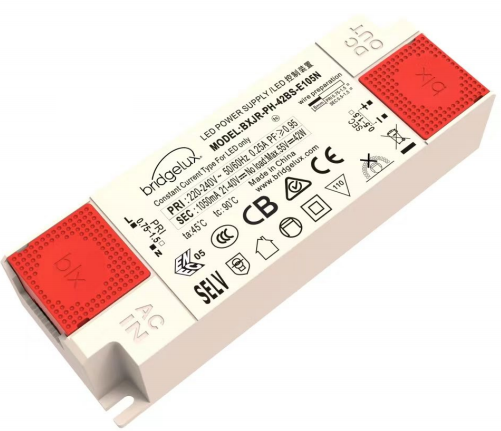

BXJR-PH-xxBS-ExxxN
|
Bridgelux Fix Current Single Channel 24~42W Driver provides dynamic constant current output for LED
modules and arrays. This Driver provides fix current and allows for simple integration of Bridgelux’s and all
major brands
|
| 型号名称 |
输出功率(W, max) |
输入电压(Vac) |
输出电压(Vdc) |
输出电流(mA) |
转换效率(满载) |
PF值(满载) |
尺寸(L*W*H) |
| BXJR-PH-xxBS-ExxxN |
24-44W |
220 – 240 VAC |
21VDC – 40VDC |
600-1050mA |
87%-89% |
0.9 |
105.8*40*23mm |
|
| 型号 |
规格书名称 |
上传时间 |
下载 |
| BXJR-PH-xxBS-ExxxN |
24-42W High PF Slim Brick Driver |
2025-2-20 |
点击下载 |
|
|
|
|
|

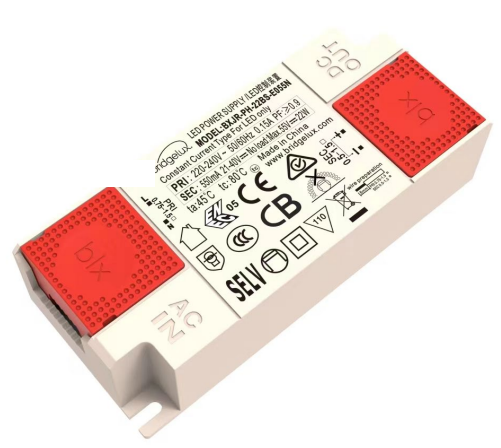

BXJR-PH-xxBS-ExxxN
|
Bridgelux Fix Current Single Channel 4~22W Driver provides dynamic constant current output for LED
modules and arrays. This Driver provides fix current and allows for simple integration of Bridgelux’s and all
major brands
|
| 型号名称 |
输出功率(W, max) |
输入电压(Vac) |
输出电压(Vdc) |
输出电流(mA) |
转换效率(满载) |
PF值(满载) |
尺寸(L*W*H) |
| BXJR-PH-xxBS-ExxxN |
4-22W |
220 – 240 VAC |
21VDC – 40VDC |
100-550mA |
80%-88% |
0.9 |
82.8*40*23mm |
|
| 型号 |
规格书名称 |
上传时间 |
下载 |
| BXJR-PH-xxBS-ExxxN |
4-22W High PF Slim Brick Driver |
2025-2-20 |
点击下载 |
|
|
|
|
|

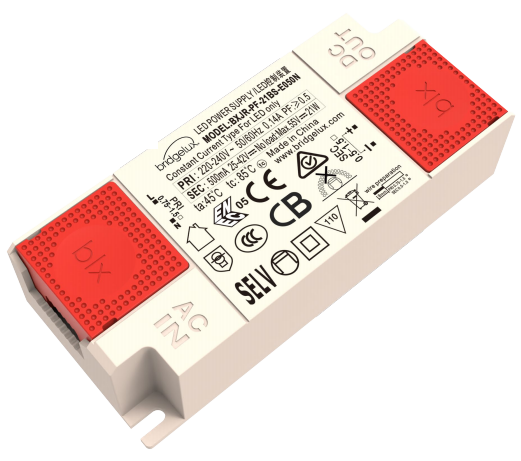

BXJR-PF-xxBS-ExxxN
|
Bridgelux Fix Current Single Channel 7~21W Driver provides dynamic constant current output for LED
modules and arrays. This Driver provides fix current and allows for simple integration of Bridgelux’s and all
major brands
|
| 型号名称 |
输出功率(W, max) |
输入电压(Vac) |
输出电压(Vdc) |
转换效率(满载) |
PF值(满载) |
尺寸(L*W*H) |
| BXJR-PF-xxBS-ExxxN |
7-21W |
220 – 240 VAC |
14-24V / 25-42V |
85%-88% |
0.5 |
82.8*40*23mm |
|
| 型号 |
规格书名称 |
上传时间 |
下载 |
| BXJR-PF-xxBS-ExxxN |
7-21W Low PF Slim Brick Driver |
2025-2-20 |
点击下载 |
|
|
|
|
|

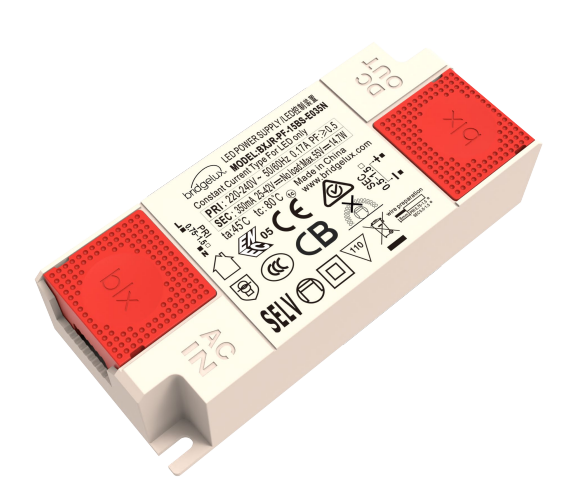

BXJR-PF-xxBS-ExxxN
|
Bridgelux Fix Current Single Channel 5~15W Driver provides dynamic constant current output for LED
modules and arrays. This Driver provides fix current and allows for simple integration of Bridgelux’s and all
major brands
|
| 型号名称 |
输出功率(W, max) |
输入电压(Vac) |
输出电压(Vdc) |
输出电流(mA) |
转换效率(满载) |
PF值(满载) |
尺寸(L*W*H) |
| BXJR-PF-xxBS-ExxxN |
5-15W |
220 – 240 VAC |
25VDC – 42VDC |
150-350mA |
80%-84% |
0.5 |
82.8*40*23mm |
|
| 型号 |
规格书名称 |
上传时间 |
下载 |
| BXJR-PF-xxBS-ExxxN |
5-15W Low PF Slim Brick Driver |
2025-2-20 |
点击下载 |
|
| 认证证书名称 |
上传时间 |
下载 |
| CB TEST CERTIFICATE< |
2025-2-20 |
点击下载 |
|
|
|
|
|

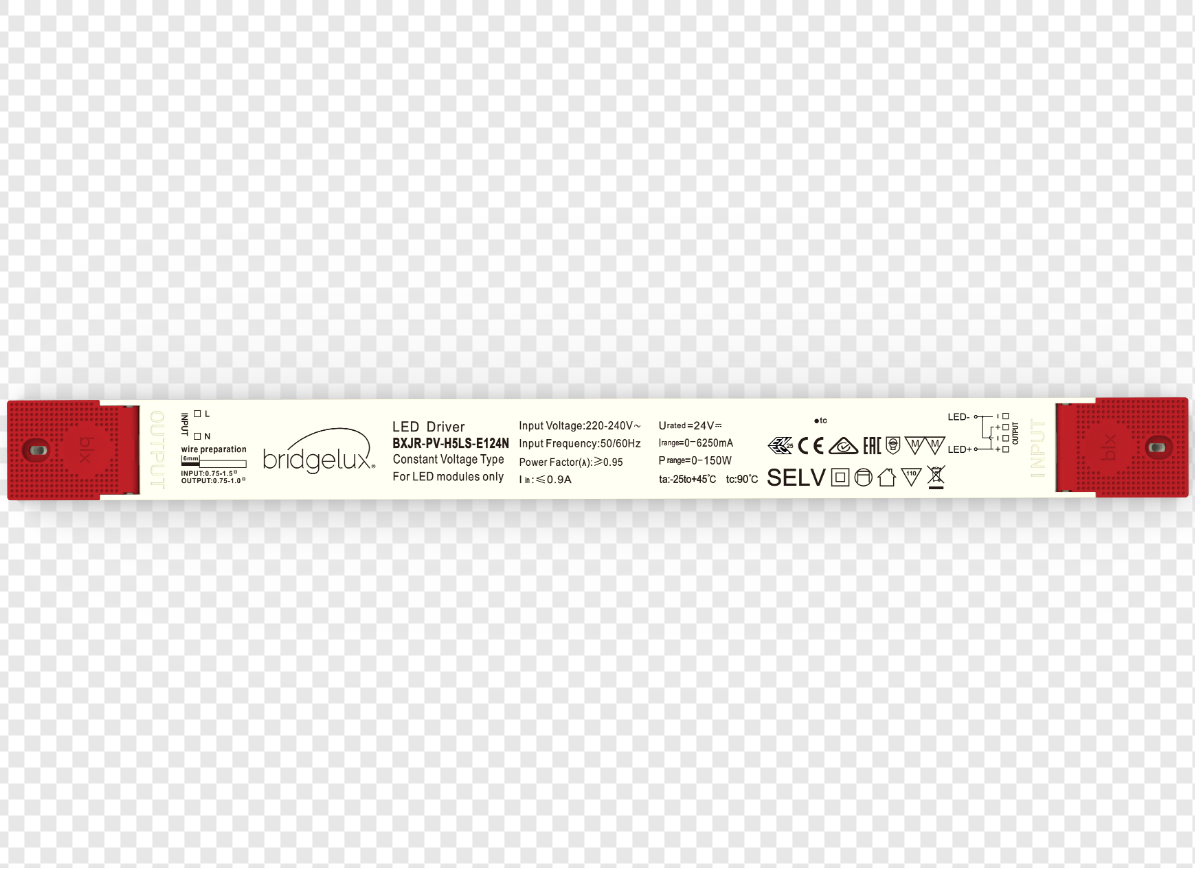

BXJR-PV-XXLS-E124N
|
Bridgelux Constant Voltage Single Channel 30~250W Driver provides constant output for LED modules
and strips. This Driver allows for simple integration of Bridgelux’s and all major brands White Arrays and
LED strips.
|
| 型号名称 |
输出功率(W, max) |
输入电压(Vac) |
输出电压(Vdc) |
| BXJR-PV-XXLS-E124N |
30-250W |
220 – 240 VAC |
24V |
|
| 型号 |
规格书名称 |
上传时间 |
下载 |
| BXJR-PV-XXLS-E124N |
30-250W 24V Constant Voltage Slim Linear Driver |
2025-2-20 |
点击下载 |
|
|
|
|
|

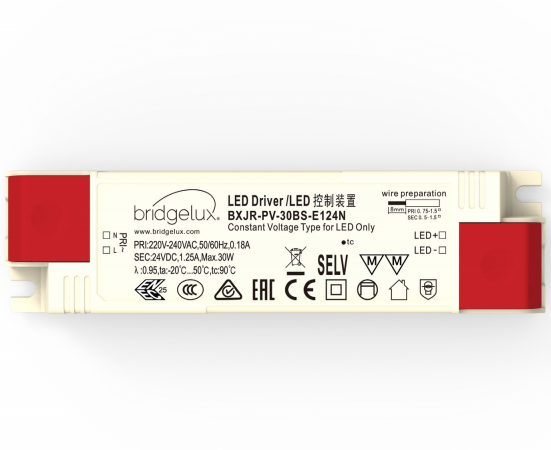

BXJR-PV-XXBS-E124N
|
Bridgelux Constant Voltage Single Channel 30~180W Driver provides constant output for LED modules
and strips. This Driver allows for simple integration of Bridgelux’s and all major brands White Arrays and
LED strips.
|
| 型号名称 |
输出功率(W, max) |
输入电压(Vac) |
输出电压(Vdc) |
| BXJR-PV-XXBS-E124N |
30-180W |
220 – 240 VAC |
24V |
|
| 型号 |
规格书名称 |
上传时间 |
下载 |
| BXJR-PV-XXBS-E124N |
Non-Dim Single Channel 30-180W 24V |
2025-2-20 |
点击下载 |
|
|
|
