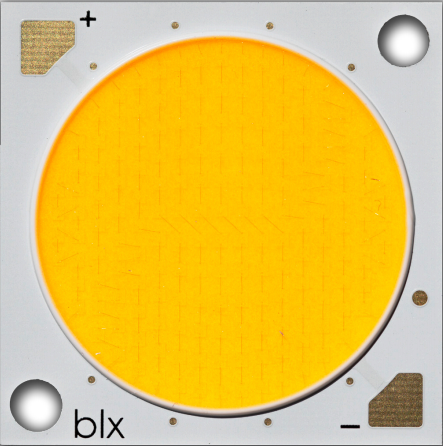

V22D BXRE-xxx6500-D-8x
|
• Efficacy of 180 lm/W typical, 3000K 80 CRI
• Reliable operation at up to 3x nominal current, 30%
increase in maximum lumens per LES size
• Wide selection of CCT options (2700K-6500K) with
minimum 70, 80 and 90 CRI options
• Uniform high-quality illumination
• 2 and 3 SDCM binning options (2700K – 4000K)
• Forward voltage bin codes and backside marking
• Instant light with unlimited dimming
• 5-Year warranty
|
| 型号名称 |
输出功率(W, max) |
输出电压(Vdc) |
输出电流(mA) |
尺寸(L*W*H) |
| V22D BXRE-xxx6500-D-8x |
50-105W |
36V |
1200-2500mA |
28*28 |
|
|
|
|
|
V18C BXRE-xxx4000-C-8x
|
• Efficacy of 180 lm/W typical, 3000K 80 CRI
• Reliable operation at up to 3x nominal current, 30%
increase in maximum lumens per LES size
• Wide selection of CCT options (2700K-6500K) with
minimum 70, 80 and 90 CRI options
• Uniform high-quality illumination
• 2 and 3 SDCM binning options (2700K – 4000K)
• Forward voltage bin codes and backside marking
• Instant light with unlimited dimming
• 5-Year warranty
|
| 型号名称 |
输出功率(W, max) |
输出电压(Vdc) |
输出电流(mA) |
尺寸(L*W*H) |
| V18C BXRE-xxx4000-C-8x |
50-90W |
36V |
1200-2100mA |
24*24 |
|
|
|
|
|
V18B BXRE-xxx4000-B-8x
|
• Efficacy of 180 lm/W typical, 3000K 80 CRI
• Reliable operation at up to 3x nominal current, 30%
increase in maximum lumens per LES size
• Wide selection of CCT options (2700K-6500K) with
minimum 70, 80 and 90 CRI options
• Uniform high-quality illumination
• 2 and 3 SDCM binning options (2700K – 4000K)
• Forward voltage bin codes and backside marking
• Instant light with unlimited dimming
• 5-Year warranty
|
| 型号名称 |
输出功率(W, max) |
输出电压(Vdc) |
输出电流(mA) |
尺寸(L*W*H) |
| V18B BXRE-xxx4000-B-8x |
40-70W |
36V |
1000-1700mA |
24*24 |
|
|
|
|
|
V13C BXRE-xxx2000-C-8x
|
• Efficacy of 178 lm/W typical, 3000K 80 CRI
• Reliable operation at up to 3x nominal current, 30%
increase in maximum lumens per LES size
• Wide selection of CCT options (2700K-6500K) with
minimum 70, 80 and 90 CRI options
• Uniform high-quality illumination
• 2 and 3 SDCM binning options (2700K – 4000K)
• Forward voltage bin codes and backside marking
• Instant light with unlimited dimming
• 5-Year warranty
|
| 型号名称 |
输出功率(W, max) |
输出电压(Vdc) |
输出电流(mA) |
尺寸(L*W*H) |
| V13C BXRE-xxx2000-C-8x |
30-50W |
36V |
700-1200mA |
19*19 |
|
|
|
|
|
V13B BXRE-xxx2000-B-8x
|
• Efficacy of 178 lm/W typical, 3000K 80 CRI
• Reliable operation at up to 3x nominal current, 30%
increase in maximum lumens per LES size
• Wide selection of CCT options (2700K-6500K) with
minimum 70, 80 and 90 CRI options
• Uniform high-quality illumination
• 2 and 3 SDCM binning options (2700K – 4000K)
• Forward voltage bin codes and backside marking
• Instant light with unlimited dimming
• 5-Year warranty
|
| 型号名称 |
输出功率(W, max) |
输出电压(Vdc) |
输出电流(mA) |
尺寸(L*W*H) |
| V13B BXRE-xxx2000-B-8x |
20-38W |
36V |
500-950mA |
19*19 |
|
|
|
|
|
V10A BXRE-xxx1000-A-8x
|
• Efficacy of 178 lm/W typical, 3000K 80 CRI
• Reliable operation at up to 3x nominal current, 30%
increase in maximum lumens per LES size
• Wide selection of CCT options (2700K-6500K) with
minimum 70, 80 and 90 CRI options
• Uniform high-quality illumination
• 2 and 3 SDCM binning options (2700K – 4000K)
• Forward voltage bin codes and backside marking
• Instant light with unlimited dimming
• 5-Year warranty
|
| 型号名称 |
输出功率(W, max) |
输出电压(Vdc) |
输出电流(mA) |
尺寸(L*W*H) |
| V10A BXRE-xxx1000-A-8x |
10-30W |
36V |
250-750mA |
13.5*13.5 |
|
|
|
