中山锐智照明有限公司

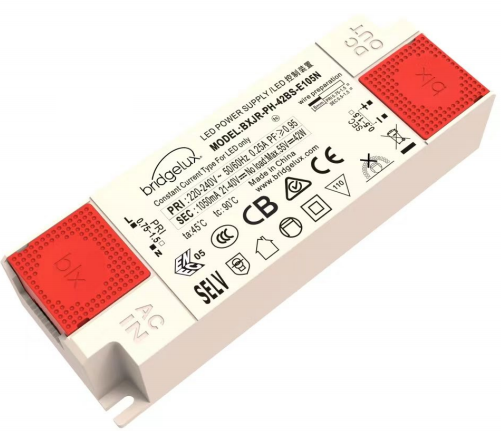

Bridgelux Fix Current Single Channel 24~42W Driver provides dynamic constant current output for LED

modules and arrays. This Driver provides fix current and allows for simple integration of Bridgelux’s and all

major brands

型号名称	输出功率(W, max)	输入电压(Vac)	输出电压(Vdc)	输出电流(mA)	转换效率(满载)	PF值(满载)	尺寸(LWH)
BXJR-PH-xxBS-ExxxN	24-44W	220 – 240 VAC	21VDC – 40VDC	600-1050mA	87%-89%	0.9	105.84023mm

型号	规格书名称	上传时间	下载
BXJR-PH-xxBS-ExxxN	24-42W High PF Slim Brick Driver	2025-2-20	点击下载

暂无认证证书
