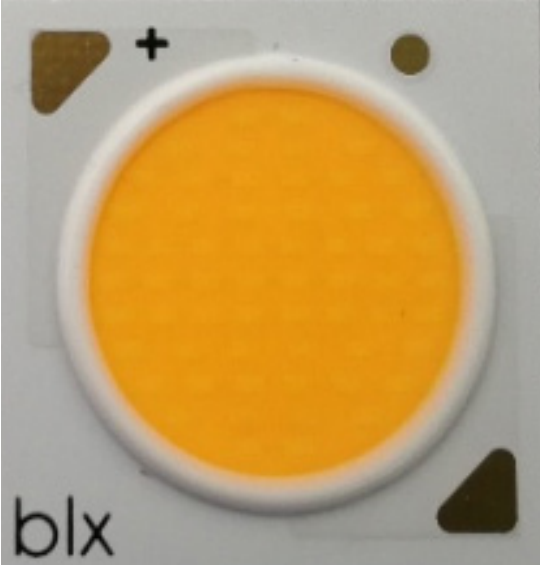

C13E BXKC-xxx4000-E-1x
|
• Compact, high flux density light source
• Uniform, high quality illumination
• Streamlined thermal path
• ENERGY STAR® / ANSI compliant color binning
structure with 2, 3 and 4 SDCM options
• Higher energy efficiency than incandescent, halogen
and CFL lamps
• Industry standard DC voltage operation
• Instant light with unlimited dimming
• RoHS and REACH compliant
|
| 型号名称 |
输出电压(Vdc) |
输出电流(mA) |
尺寸(L*W*H) |
| C13E BXKC-xxx4000-E-1x |
36V |
500-1050mA |
17.85*17.85 |
|
| 型号 |
规格书名称 |
上传时间 |
下载 |
| C13E BXKC-xxx4000-E-1x |
DS339 E series LES13- E13 CA LED ArrayData Sheet |
2025-2-17 |
点击下载 |
|
|
|
|
|
C13D BXKC-xxx3000-D-1x
|
• Compact, high flux density light source
• Uniform, high quality illumination
• Streamlined thermal path
• ENERGY STAR® / ANSI compliant color binning
structure with 2, 3 and 4 SDCM options
• Higher energy efficiency than incandescent, halogen
and CFL lamps
• Industry standard DC voltage operation
• Instant light with unlimited dimming
• RoHS and REACH compliant
|
| 型号名称 |
输出电压(Vdc) |
输出电流(mA) |
尺寸(L*W*H) |
| C13D BXKC-xxx3000-D-1x |
36V |
300-800mA |
17.85*17.85 |
|
| 型号 |
规格书名称 |
上传时间 |
下载 |
| C13D BXKC-xxx3000-D-1x |
DS339 E series LES13- E13 CA LED Array Data Sheet |
2025-2-17 |
点击下载 |
|
|
|
|
|
C10 BXKC-xxx2000-C-1x
|
• Compact, high flux density light source
• Uniform, high quality illumination
• Streamlined thermal path
• ENERGY STAR® / ANSI compliant color binning
structure with 2, 3 and 4 SDCM options
• Higher energy efficiency than incandescent, halogen
and CFL lamps
• Industry standard DC voltage operation
• Instant light with unlimited dimming
• RoHS and REACH compliant
|
| 型号名称 |
输出功率(W, max) |
输出电压(Vdc) |
输出电流(mA) |
尺寸(L*W*H) |
| C10 BXKC-xxx2000-C-1x |
10-24W |
36V |
250-600mA |
15.85*15.85 |
|
| 型号 |
规格书名称 |
上传时间 |
下载 |
| C10 BXKC-xxx2000-C-1x |
DS336 E series LES8- E8 CA LED Array Datasheet |
2025-2-17 |
点击下载 |
|
|
|
|
|
C8 BXKC-xxx1501-X-1x
|
• Compact, high flux density light source
• Uniform, high quality illumination
• Streamlined thermal path
• ENERGY STAR® / ANSI compliant color binning
structure with 2, 3 and 4 SDCM options
• Higher energy efficiency than incandescent, halogen
and CFL lamps
• Industry standard DC voltage operation
• Instant light with unlimited dimming
• RoHS and REACH compliant
|
| 型号名称 |
输出功率(W, max) |
输出电压(Vdc) |
输出电流(mA) |
尺寸(L*W*H) |
| C8 BXKC-xxx1501-X-1x |
7-12W |
36V |
50-300mA |
15.85*15.85 |
|
| 型号 |
规格书名称 |
上传时间 |
下载 |
| C8 BXKC-xxx1501-X-1x |
DS336 E series LES8- E8 CA LED Array Datasheet |
2025-2-17 |
点击下载 |
|
|
|
|
|
C6 BXKC-xxx0801-X-1x
|
• Compact, high flux density light source
• Uniform, high quality illumination
• Streamlined thermal path
• ENERGY STAR® / ANSI compliant color binning
structure with 2, 3 and 4 SDCM options
• Higher energy efficiency than incandescent, halogen
and CFL lamps
• Industry standard DC voltage operation
• Instant light with unlimited dimming
• RoHS and REACH compliant
|
| 型号名称 |
输出功率(W, max) |
输出电压(Vdc) |
输出电流(mA) |
尺寸(L*W*H) |
| C6 BXKC-xxx0801-X-1x |
3-8W |
36V |
50-200mA |
13.35*13.35 |
|
| 型号 |
规格书名称 |
上传时间 |
下载 |
| C6 BXKC-xxx0801-X-1x |
DS335 E series LES6- E6 CA LED Array Data Sheet |
2025-2-17 |
点击下载 |
|
| 认证证书名称 |
上传时间 |
下载 |
| IEC 62031 BXKC BXKE Report< |
2025-2-17 |
点击下载 |
|
|
|
